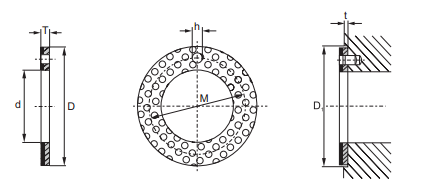

| 軸徑 | 型號規格 | 墊片尺寸 | 安裝尺寸 | ||||||
| d +0.25 | D -0.25 | T -0.05 | M±0.125 |
|
t±0.20 | D1+0.12 | |||
| 8 | SF-2WC 10 | 10 | 20 | 1.5 | 15 | 1.5 | 1.0 | 20 | |
| 10 | SF-2WC 12 | 12 | 24 | 18 | 24 | ||||
| 12 | SF-2WC 14 | 14 | 26 | 20 | 2.0 | 26 | |||
| 14 | SF-2WC 16 | 16 | 30 | 23 | 30 | ||||
| 16 | SF-2WC 18 | 18 | 32 | 2.0 | 25 | 32 | |||
| 18 | SF-2WC 20 | 20 | 36 | 28 | 3.0 | 36 | |||
| 20 | SF-2WC 22 | 22 | 38 | 30 | 38 | ||||
| 22 | SF-2WC 24 | 24 | 42 | 33 | 42 | ||||
| 24 | SF-2WC 26 | 26 | 44 | 35 | 44 | ||||
| 26 | SF-2WC 28 | 28 | 48 | 38 | 4.0 | 48 | |||
| 30 | SF-2WC 32 | 32 | 54 | 43 | 54 | ||||
| 36 | SF-2WC 38 | 38 | 62 | 50 | 62 | ||||
| 40 | SF-2WC 42 | 42 | 66 | 54 | 66 | ||||
| 46 | SF-2WC 48 | 48 | 74 | 61 | 1.5 | 74 | |||
| 50 | SF-2WC 52 | 52 | 78 | 65 | 78 | ||||
| 60 | SF-2WC 62 | 62 | 90 | 76 |
90 |
||||
